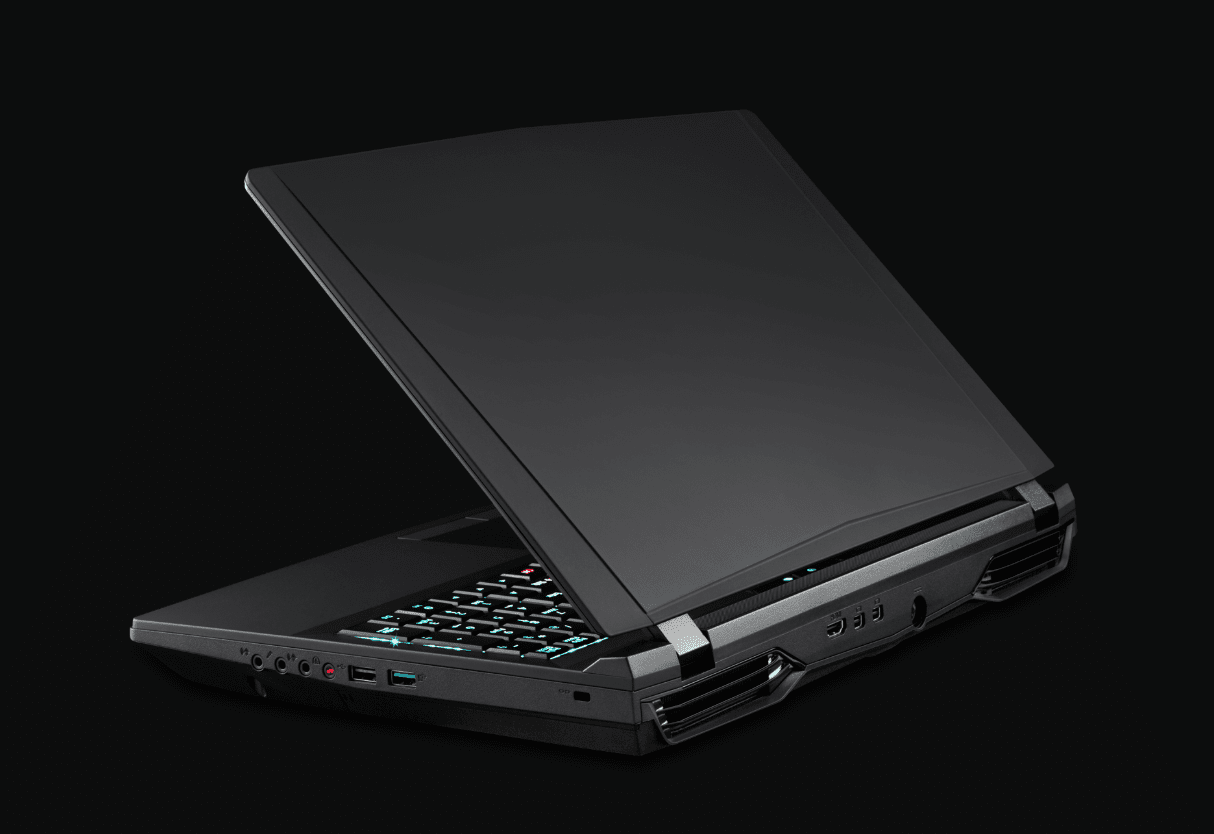

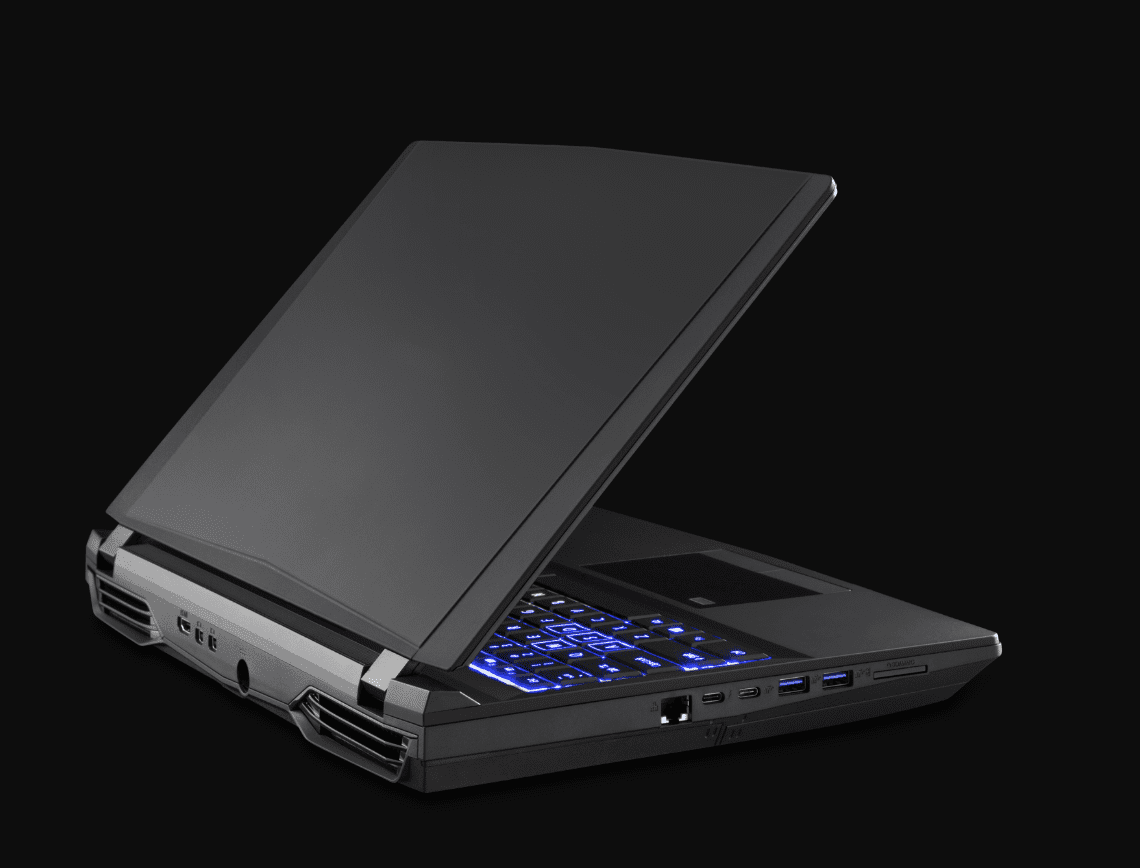

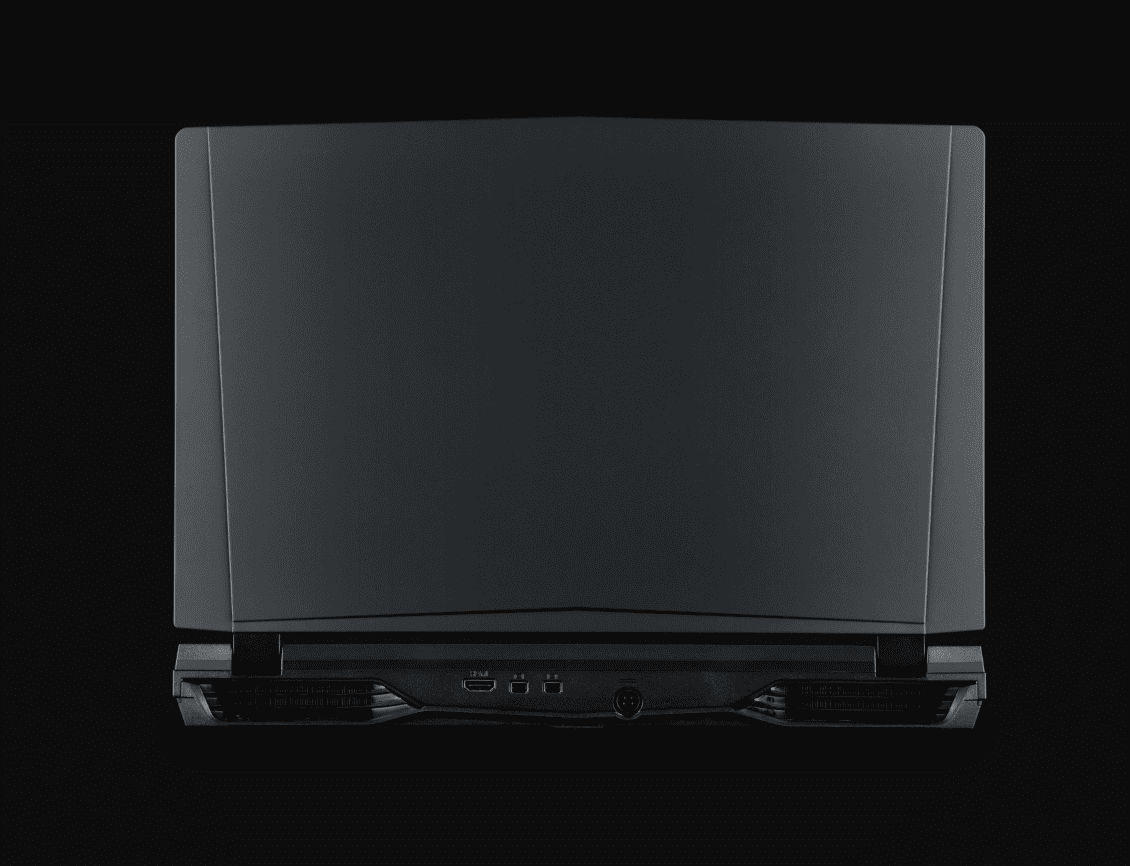

HTCI EDAS FOX Laptop 17 2023

HTCI EDAS FOX Laptop 17 2023

EDAS FOX LAPTOP 17′ es un Sistema Forense Integrado para la extracción y el análisis de evidencia digital (discos duros, memorias USB, computadores, teléfonos, drones, media, tablets, entre otros). Incluye herramientas para la decodificación y reporte de los datos extraídos, permitiendo además su análisis e integración con otras fuentes (CDRs, imágenes forenses, videos, fotografías, otros). El kit contiene todos los cables, dispositivos y adaptadores necesarios para la extracción segura de una evidencia digital .

Especificaciones Técnicas

  • 13th Generation Intel Core i9-13900HX Processor (24 Cores, 36MB Smart Cache, 5.40GHz Turbo)
  • 17.3″ QHD 240Hz, Wide View Angle, 100% DCI-P3, G-Sync Matte Display (2560 x 1440)
  • NVIDIA GeForce RTX 4090 GPU with 16GB GDDR6 Video Memory
  • Windows 11 Pro 64-Bit Edition Preinstalled
  • 64GB Dual Channel DDR5 SDRAM at 4800MHz – 2 X 32GB
  • 2TB Samsung 980 Pro M.2 PCIe Gen 4 NVMe SSD
  • 2TB Samsung 970 EVO Plus M.2 PCIe NVMe SSD – Slot 2
  • 2TB Samsung 970 EVO Plus M.2 PCIe NVMe SSD – Slot 3
  • Killer Dual Band Wireless-AX 1650X M.2 Wireless LAN + Bluetooth Module – Fuentes de poder y batería
  • Maleta rígida para transporte del equipo. Garantía un año.
  • Bloqueador Forense Write Protect Portable
  • Según especificaciones técnicas modelo EDAS FOX LT17 Series 2023
Core LogicIntel HM470 Express Chipset
MemorySupports Dual Channel DDR4Two 260Pin SODIMM sockets, support for DDR4 up to 2933MHz (Real operation frequency depends on processor) Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module.
15.6” Full HD (1920x1080) 144Hz, Wide View Angle, Matte Finished
GraphicsSwitchable GPU by Microsoft Hybrid
ProcessorGraphics - NVIDIA GeForce RTX 3060 GPU / Intel UHD Graphics
NVIDIA GeForce RTX 3060, 6GB GDDR6 - Support PCIe x16
- Microsoft DirectX 12 Compatible
- NVIDIA CUDA Technology
- Support 4 active displays
- Maximum TGP: 105 W (including 15W Dynamic Boost 2.0)
Intel UHD Graphics (Integrated in Core i7- 10870H processor)
- HDR Support
- Rec. 2020 (Wide Color Gamut)
- Microsoft DirectX 12 Compatible
StorageOne changeable 2.5” 7.0mm(H) HDD/SSD, SATA interface
One M.2 2280 SSD, SATA / PCIe Gen3x4 interface or Two M.2 2280 PCIe Gen3x4 interface (RAID 0/1)
Audio SystemHigh Definition audio interface Built-in Array Microphone
2 Built-in Speakers
Sound Blaster Cinema 6
Pointing DeviceIntegrated touchpad with Microsoft PTP multi-gesture and scrolling function

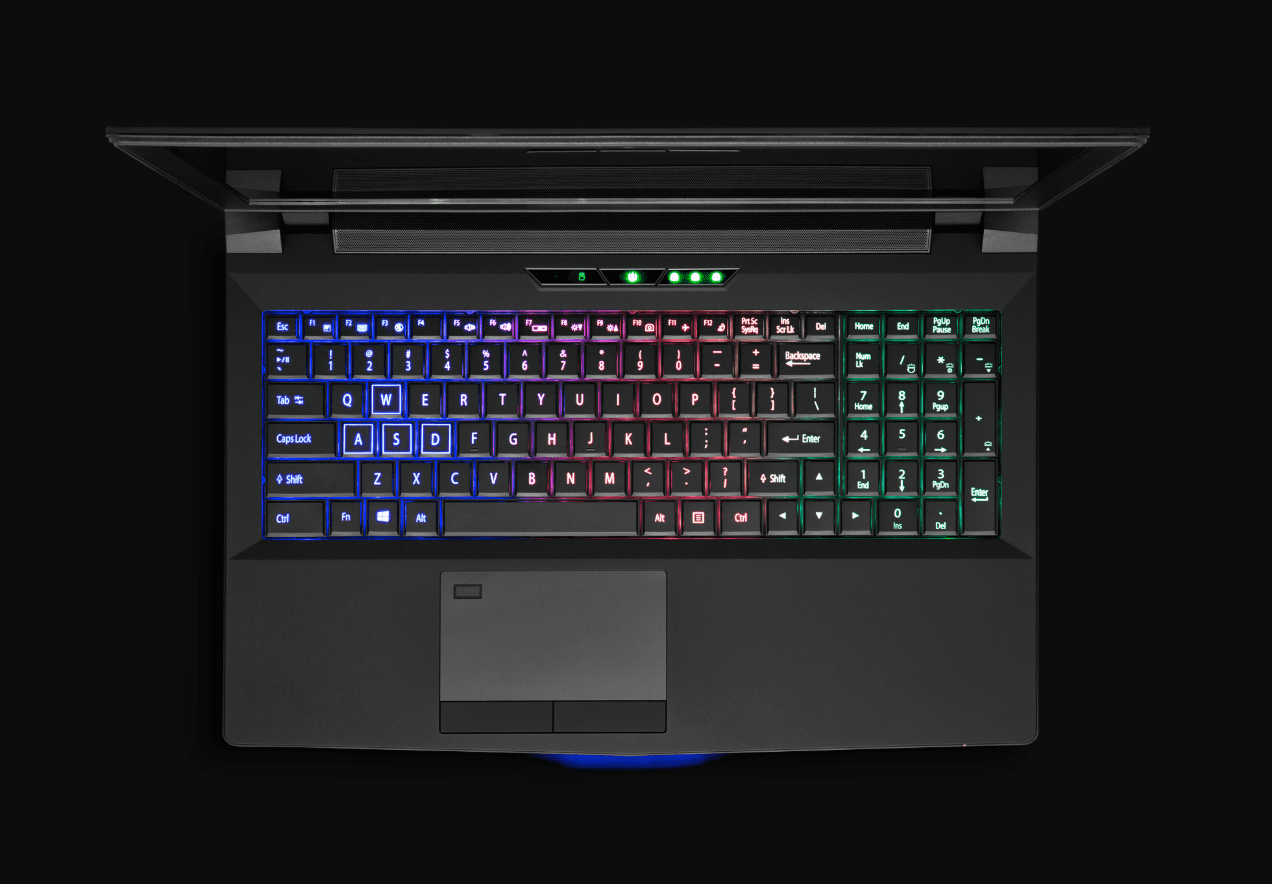

KeybordMulti languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad. (15 colors to select)
Fully programmable macro capability - customize individual key as hot key / multiple keystrokes in one key
I/O PortsI/O Ports
Security Power System
OS Support Certificate
Physical Characteristic Other Features
1 HDMI output Port (with HDCP)
1 Mini DisplayPort 1.4 output Port
1 DisplayPort 1.4 over USB 3.2 Gen 2 (Type-C) 1 USB 2.0 Port (Type A)
1 USB 3.2 Port (Type A)
1 USB 3.2 Gen 2 Port (Type A)
1 2-in-1 Audio Jack (Headphone / Microphone) 1 Microphone Jack
1 RJ-45 LAN (10/100/1000Mbps)
Slots6-in-1 Push-Push Card Reader (MMC/RSMMC/SD/Mini- SD/SDHC/SDXC)
Three M.2 Card Slots
- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface - 2nd for SSD M.2 2280 Card with SATA / PCIe Gen3 x4 interface
- 3rd for SSD M.2 2280 Card with PCIe Gen3x4 interface
CommunicationBuilt-in Gigabit Ethernet LAN
Intel Dual Band Wireless Wi-Fi 6 AX + Bluetooth, M.2 interface Killer Dual Band Wireless-AX 1650X + Bluetooth, M.2 interface
SecurityKensington Lock
Intel PTT (Platform Trust Technology)
Power SystemRemovable 4 cells Smart Lithium-Ion battery pack 48.96WH Full Range AC-in 100~240V, 50~60Hz, 180W AC Adapter, DC output 19.5V, 9.23A
OS SupportWindows 10 (64-bit)
CertificateWindows 10 (64-bit) Logo HDMI Logo
Physical Characteristic4.85 lbs including bare bone and 48.96WH Battery Pack 14.21" (w) x 10.16" (d) x 1.10" (h)
Other FeaturesMetal top case
Built-in 1.0M HD Video Camera FlexiCharger
Virtual Reality ready via HDMI from dGPU Windows Mixed Reality Compatible
